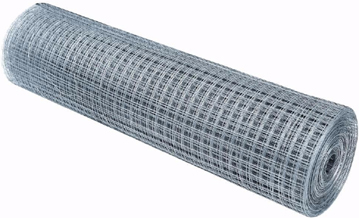

Welded Wire Mesh
HOME > Products > Generic Mesh & Nettings > Views
Welded wire mesh is processed with mild steel or , it boasts a wide range of applications with several options of surface finish ( progressively longer in life span):
● Electic-galvanized before welded
● Hot-dipped galvanized before welded
● Hot-dipped galvanized after welded

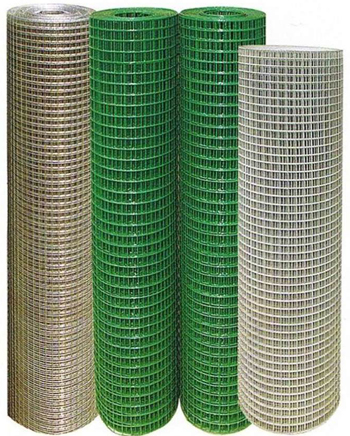

● Vinyl-coated (Plastic coated)
Popular Specifications Available
Wire Gauge
(BWG)
Application
INCH
1/4”X 1/4”
6.4 mm X6.4 mm
25 GA –
22GA
Generic use
3/8”X 3/8”
9.5 mm X9.5 mm
22 GA –
19 GA
1/2”X 1/2”
12.7 mm X12.7 mm
24 GA –
16 GA
5/8”X 5/8”
16 mm X16 mm
21 GA –
18 GA
3/4”X 3/4”
19 mm X19 mm
21 GA –
16 GA
1” X1”
25.4 mm X25.4 mm
20 GA –
14 GA
1-1/2”X 1-1/2”
38 mm X38 mm
19 GA –
14 GA
1” X 1/2”
25.4 mm X12.7 mm
21 GA –
16 GA
2” X1”
50.8 mm X25.4 mm
19 GA –
14 GA
2” X2”
50.8 mm X50.8 mm
18 GA –
12 GA
Primarily used for fencing
3” X2”
75 mm X50.8 mm
18 GA –
12 GA
3” X3”
75 mm X75 mm
18 GA –
16 GA
4” X2”
100 mm X75 mm
16 GA –
12 GA
4” X4”
100 mm X100 mm
16 GA –
12 GA
6” X6”
152.4mm X152.4mm
10 GA –
16GA
Height available from0.5mto2m, length on demand.
Packing: In rolls wrapped by water-proof
paper or plastic film shrinked.
Particular
specifications and packaging options are available upon request.
Mesh Spacing
MM
