Fence Panels
HOME > Products > Fence Solutions > Views
Panels processed by auto welding technology with mild steel wire paired with posts and accessories provide effective and aesthetic-pleasing fencing solutions, they are extensively applied in municipal，industrial，residential and commercial facilities and correctional institutions, their popularity comes from the low cost, easy assembling and durability. All the panels are finished with galvanizing, phosphating and baked poly powder coating.

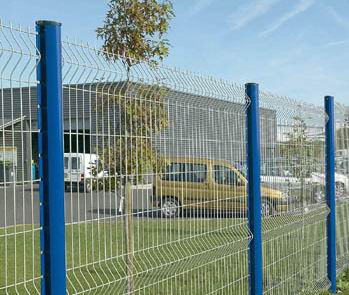

FORTI PANEL
It features “V” shaped foldings and protruded top barbs. It is also named “3D panel”.
Forti panel specifications
|
Height (mm) |
Length (mm) |
Mesh spacing |
Wire Dia |
“V” foldings |
|
830 |
2000 or 2500 |
200 X 50 mm |
4.0mm /4.5mm /5.0mm |
2 |
|
1030 |
2000 or 2500 |
200 X 50 mm |
4.0mm /4.5mm /5.0mm |
2 |
|
1230 |
2000 or 2500 |
200 X 50 mm |
4.0mm /4.5mm /5.0mm |
2 |
|
1530 |
2000 or 2500 |
200 X 50 mm |
4.0mm /4.5mm /5.0mm |
3 |
|
1830 |
2000 or 2500 |
200 X 50 mm |
4.0mm /4.5mm /5.0mm |
4 |
|
2030 |
2000 or 2500 |
200 X 50 mm |
4.0mm /4.5mm /5.0mm |
4 |
|

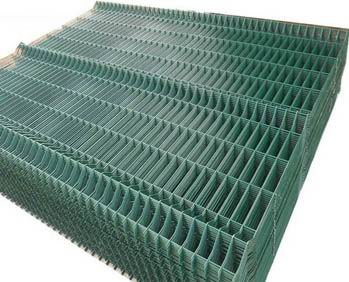

More options of mesh spacing: 100 X 50mm, 100 X 55mm, 200 X 55mm and 200 X 65mm. Packing: On pallet. 40’ container is preferable due to the low weight. |
||||

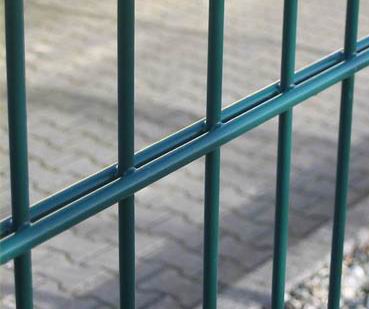

DOUBLE WIRE PANEL
Different from Forti panel with “V” foldings, it is flat, but each vertical wire is sandwiched with 2 horizontal wires to create a more solid structure.
Specifications available:

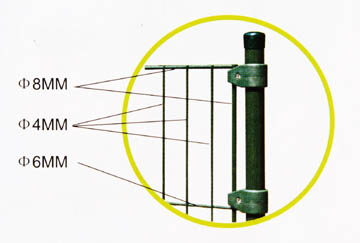

● Wire Dia: 8/6/8MM or 6/5/6 MM
● Mesh spacing: 200 X 50MM, 200 X 55MM, 200 X 65MM
● Height: 830, 1030, 1230, 1530, 1830, 2030 and 2230MM
● Length: 2000MM or 2500MM.

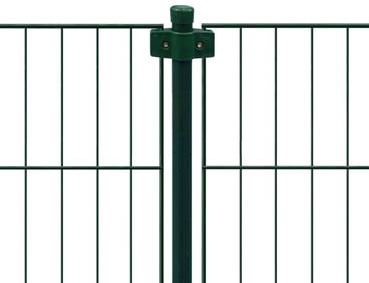

EURO PANEL
Specifications available:
● Mesh spacing: 250 X 50MM
● Height: 500 MM to 1750MM
● Length: 2000MM
