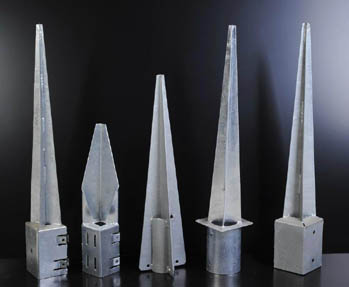

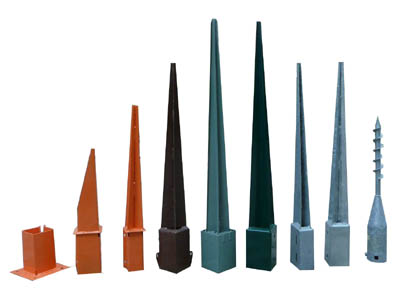

Post Anchors
HOME > Products > Fence Solutions > ViewsPole Anchors
Popular post anchor specifications:
46 X 46 X 600 mm 77 X 77 X 900 mm
51 X 51 X 600 mm 91 X 91 X 750 mm
51 X 51 X 650 mm 91 X 91 X 900 mm
61 X 61 X 750 mm 96 X 96 X 750 mm
71 X 71 X 750 mm 96 X 96 X 900 mm
71 X 71 X 900 mm 102 X 102 X 750 mm
75 X 75 X 750 mm 102 X 102 X 900 mm
77 X 77 X 750 mm 121 X 121 X 900 mm
Material: Mild steel
Surface finish: Electric-galvanized, Hot dipped galvanized or Poly powder coated.

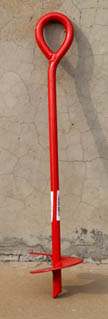

Ground Screws
Description of Ground screws
|
Length |
600-3500mm |
|
Outside Dia of Pipe |
48mm, 60mm,76mm,89mm,114 mm etc. |
|
Pipe Thickness |
3-5 mm |
|
Material |
Mild steel |
|
Surface Finished |
Hot dipped galvanized or Electric galvanized |
|
Packing |
On pallet |
More Specifications Available
|
Specifications |
Pipe Dia |
Length(mm) |
Flange Size(mm) |
Pipe Thickness |
|
WKFR76*1200-220 |
76 mm |
1200 |
220*8 |
3-5 mm |
|
WKFR76*1600-220 |
1600 |
220*8 |
||
|
WKFR76*1800-220 |
1800 |
220*8 |
||
|
WKFR76*2000-220 |
2000 |
220*8 |
||
|
WKFR76*2500-220 |
2500 |
220*8 |
||
|
WKFR76*3000-220 |
3000 |
220*8 |
||
|
WKFR88.9*1200-220 |
88.9 mm |
1200 |
220*8 |
3-5 mm |
|
WKFR88.9*1600-220 |
1600 |
220*8 |
||
|
WKFR88.9*2000-220 |
2000 |
220*8 |
||
|
WKFR88.9*2500-220 |
2500 |
220*8 |
||
|
WKFR88.9*3000-220 |
3000 |
220*8 |
||
|
WKFR114*1200-220 |
114 mm |
1200 |
220*8 |
3-5 mm |
|
WKFR114*1600-220 |
1600 |
220*8 |
||
|
WKFR114*1800-220 |
1800 |
220*8 |
||
|
WKFR114*2000-220 |
2000 |
220*8 |
Ground Spikes
Specifications of Ground Spikes
Pole Diameter
Total Length
Disk Diameter
Disk Thickness
Weight
3/4''(18mm)
36''(914mm)
8''(200mm)
3 mm
2.75 kgs
3/4''(18mm)
48''(1219mm)
8''(200mm)
3 mm
3.35 kgs
14mm
15''(381mm)
75mm
4 mm
0.75 kgs
14mm
30''(762mm)
75mm
4 mm
1.15 kgs
16mm
15''(381mm)
100mm
2 mm
0.53 kgs
12mm
800mm
140mm
4 mm
1.04 kgs
14mm
1000mm
180mm
4 mm
1.75 kgs
25mm
1200mm
100mm
2 mm
5.2 kgs
Finish: Hot dipped galvanized or poly
powder coated

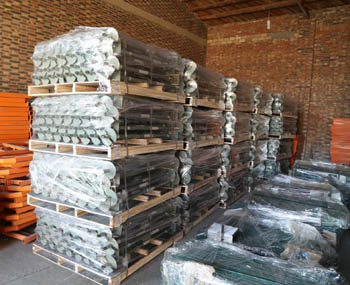

Packing: On pallet
